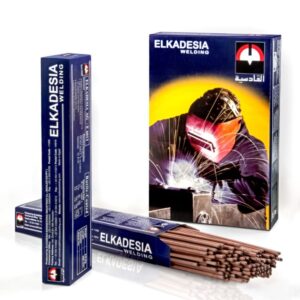

EL KADESIA OHVI E6013

AWS A5.1: E6013

EN ISO 2560 – A: E 38 2 RC 11

Description

Rutile – cellulosic coated electrode with good weldability in all positions including vertical – down. Most popular is E 6013 type. For small transformers, very good operating characteristics, flexible coating and good for tack welding. Versatile applications are in structural welding, vehicle construction, boiler, and tank welding and in shipbuilding. Also it is suitable for galvanized components.

Description

Typical Composition of all-weld Metal

	C	Si	Mn	Ni	P	S	Cr	Mo	V
Wt. %	0.08	0.40	0.50	0.01	0.01	0.01	0.01	0.002	0.03
Typical According to ASME II part C/SFA 5.1	0.20 max.	1.00 max.	1.20 max.	0.3 max.	N.S	N.S	0.20 max.	0.30 max.	0.08 max.

Mechanical Test of weld Metal

Heat Treatment	Yield Strength	Tensile Strength	Elongation L0=5d0	Impact values In J CVN
	MPa	MPa	%	+ 20 oC	+ 0 ^oC	– 20 ^oC
Tempered at 690°c/1h	430	530	28	120	105	50
Typical According to ASME II part C/SFA 5.1	≥ 330	≥ 430	≥ 17	N.S

Operating Data

Re – drying: not necessary

	2.5mm	3.25 mm	4.0mm	5.0mm
L mm	350	350	350/450	350/450
Amps A	60-100	90-130	110-170	107-240

Welding Positions

Polarity

AC & DC (±)
